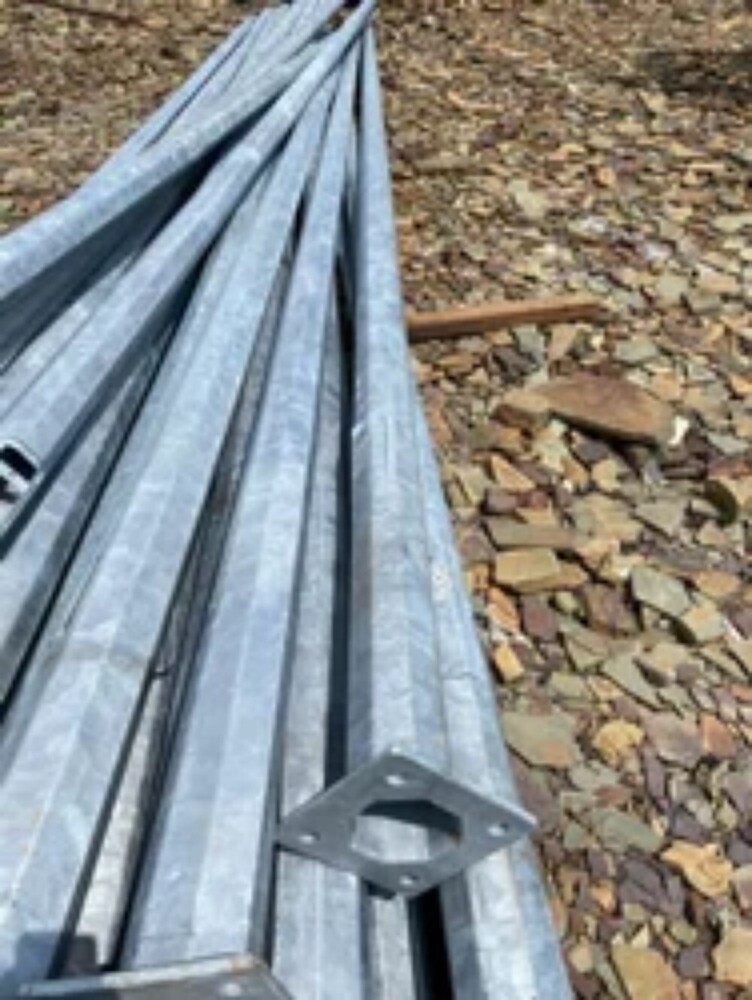

Octagonal Poles

Name: Octagonal Poles
Brand: UNIVERSAL SPORTS LIGHTING
Price: 7000.0 INR
Availability: InStock

Price 7000.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Octagonal Poles Specification

Size
Customizable as per requirement

Head Diameter
70 - 125 mm

Diameter
Base: 130mm to 200mm; Top: 70mm to 90mm

Beam
Single/Double/Triple Arm or Custom Design

Dimension (L*W*H)
Depends on pole height & design

Power
30W-120W (typical applications)

Product Type
Octagonal Pole

Material
Mild Steel (MS)/Galvanized Iron (GI)

Light Source
LED/Sodium Vapor/Metal Halide/Luminaires

Height
6m to 12m

Voltage
220V - 240V AC

Power Supply
220V AC, 50Hz

Usage
Outdoor Street Lighting, Highways, Parking Lots, Industrial Areas

Protection Level
Galvanized, UV Resistant Coating

Efficiency
High Lumen Output, Energy Efficient

Color Temperature
3000K - 6500K (Depending on Light Source)

IP Rating
IP65 - IP66 (for lighting fixture attachment)

Color
Grey/Silver (Standard), Custom Color Options Available

Anchor Bolts
Included as per Design Specification with Template

Compliance
Conforms to IS 875, IS 2713, and IEC Standards

Weight
Varies Based on Height and Material Thickness

Accessories
Arm Brackets, Street Light Fixtures, Foundation Bolts, Terminal Plate

Painting
Polyurethane/Polyester Powder Coated if Required

Wind Resistance
Designed for Wind Speed up to 150 km/h or as specified

Application
Suitable for City Roads, Highway Projects, Stadiums, Airport Premises, Industrial Campuses

Welding
Longitudinal Seam Welding as per IS Standards

Base Plate Thickness
12mm - 20mm

Surface Finish
Hot Dip Galvanized (IS 2629/BS EN ISO 1461)

Pole Taper
Generally 1:10

Pole Shape
Eight-Sided (Octagonal) Tapered Profile

Mounting Type
Flange Mounted/Base Plate or Direct Burial

Octagonal Poles Trade Information

Minimum Order Quantity
10 Pieces

FOB Port
New Delhi

Payment Terms
Cash Against Delivery (CAD), Cash Advance (CA), Letter of Credit (L/C), Cash in Advance (CID)

Supply Ability
1 Piece Per Day

Delivery Time
1 Week

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
STANDARD

Main Export Market(s)
Eastern Europe, North America, Australia, Africa, Middle East, Central America, Western Europe, Asia, South America

Main Domestic Market
All India

Certifications
ISO AND BIS

About Octagonal Poles

Octagonal Poles

Octagonal Poles Description

Octagonal poles are structures with an eight-sided design, often used for:

Street lighting: Supporting streetlights in urban and rural areas.

Traffic management: Housing traffic signals or signs.

Telecommunications: Mounting antennas or other communication equipment.

Key Features

Structural strength: Octagonal shape provides stability and durability.

Aesthetic appeal: Sleek, modern design suitable for various environments.

Versatility: Suitable for different applications and industries.

Superior Galvanized Protection

Each octagonal pole is treated with hot dip galvanization conforming to IS 2629 and BS EN ISO 1461, providing exceptional resistance to corrosion and harsh environmental factors. This process ensures long-lasting protection, making the poles suitable for challenging outdoor conditions and reducing the need for frequent maintenance.

Versatile Mounting & Customization

Whether you require flange-mounted/base plate installation or direct burial, these poles accommodate diverse site needs. Head and base diameters, length, and taper ratio (1:10) can be customized based on specific project requirements, ensuring seamless integration with lighting fixtures and accessories. Custom color options and various beam arm configurations are available.

Reliable Performance & Compliance

Designed as per IS 875, IS 2713, and relevant IEC standards, these poles support high wind speeds up to 150 km/h. The welded construction (longitudinal seam per IS standards) delivers mechanical robustness. Lighting fixtures (IP65/IP66) attached to these poles offer efficient illumination and weatherproof performance across diverse applications.

FAQ's of Octagonal Poles:

Q: How are the octagonal poles installed at project sites?

A: Octagonal poles can be either flange-mounted using a base plate and anchor bolts with a template, or installed via direct burial. The installation method depends on site requirements and foundation conditions, ensuring stability and compliance with local regulations.

Q: What benefits does hot dip galvanization provide to these poles?

A: Hot dip galvanization ensures a uniform, corrosion-resistant coating that protects the pole's metal surface from rust and harsh weather, significantly extending the pole's lifespan and minimizing long-term maintenance.

Q: When should I specify custom dimensions or accessories for my pole order?

A: Custom sizes, colors, head or base diameters, and specific accessories (like double or triple arms) should be specified during the order placement phase to ensure manufacturing aligns precisely with your project's technical and aesthetic needs.

Q: Where can these octagonal poles be effectively used?

A: These poles are ideal for city roads, highway lighting projects, stadiums, airport premises, parking lots, and industrial campuses, owing to their strong wind resistance, customizable design, and compatibility with multiple luminaires.

Q: What is the manufacturing and quality assurance process for these poles?

A: Manufacturing follows IS and IEC standards, featuring longitudinal seam welding, precision fabrication of base plates (12mm-20mm thick), and quality checks on galvanization, dimensions, and accessories. Compliance certificates are provided when required.

Q: How are lighting fixtures and other accessories incorporated?

A: The poles are supplied with arm brackets, terminal plates, and compatible mounting systems for easy integration of street light fixtures-whether LED, sodium vapor, or metal halide-ensuring high lumen output, energy efficiency, and suitable color temperature for outdoor lighting applications.

Q: What advantages do these poles offer compared to traditional shapes?

A: Octagonal, tapered profiles provide greater structural strength and wind resistance than round or square options, allowing for taller heights and more stable support of lighting fixtures, especially in exposed urban or highway environments.
